Guitar Gallery 8 of 20

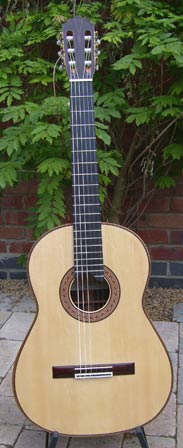

Grace front
this guitar features a good amount of beautiful hazel fichte (bear claw) across the entire soundboard.

Specification:
Soundboard: European spruce
Back/sides: Brazilian rosewood
Neck: Spanish cedar
Fingerboard: Ebony
Scale length: 650mm
Width at top nut: 52mm
Body length: 493mm
Lower bout: 368mm
Upper bout: 280mm
Waist: 244mm
Depth at heel: 86mm
Depth at bottom: 99mm
Weight: Kg 1.682
Bridge: 12 holes
Frets: 20

Grace rosette
Each rosette is individually made with very slight variation in design.

Grace heel
Tasmanian blackwood binding

Guitar Name: Grace

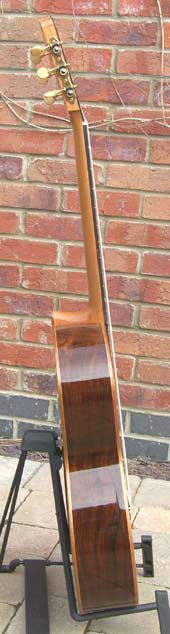

Grace side

Grace larger back
Aged brazilian rosewood of very special quality

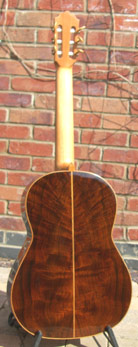

Grace back

Body Volume:
12.5 litres
This refers to the approximate internal capacity of the soundbox and gives. for comparison, a more accurate size of the different models that I make.
ie if the body cavity were filled with a liquid this is how many litres it would hold.

Grace head
Blake Robson hand made tuners with real mother of pearl buttons


Grace bass binding
double thickness binding on bass side of guitar
