Guitar Gallery 1 of 20

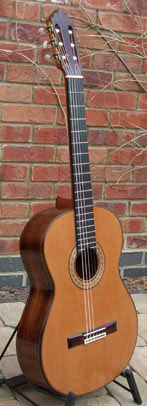

Diana front
Soundboard: Western red cedar
Back: Honduran rosewood
Sides: Honduran rosewood
Neck: American mahogany
Fingerboard: Ebony
Scale length: 650mm
Width at top nut: 52mm
Body length: 496mm
Upper bout: 286mm
Waist: 239mm
Lower bout: 362mm
Depth at heel: 94mm
Depth at waist 95mm
Depth at bottom: 99mm
Weight: Kg 1.82
Bridge: 6 hole ties
Frets: 19
Diana rosette
Each rosette is individually made with very slight variation in design. The outer & inner circles of the rosette are the same as the purfling around the edge of the soundboard.
This concert guitar owes it's inspiration to the guitars made by Ignacio Fleta
Diana side
Diana bass binding
Double thickness binding on bass side of guitar provides for greater rounding and more comfort





Diana back
Body Volume:
12 litres
This refers to the approximate internal capacity of the soundbox and gives. for comparison, a more accurate size of the different models that I make.
ie if the body cavity were filled with a liquid this is how many litres it would hold.
Diana head
Robson hand made tuners with real Mother of pearl buttons
